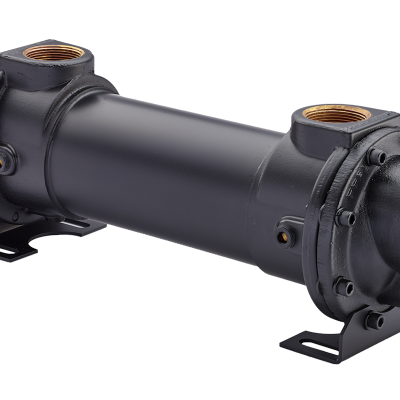

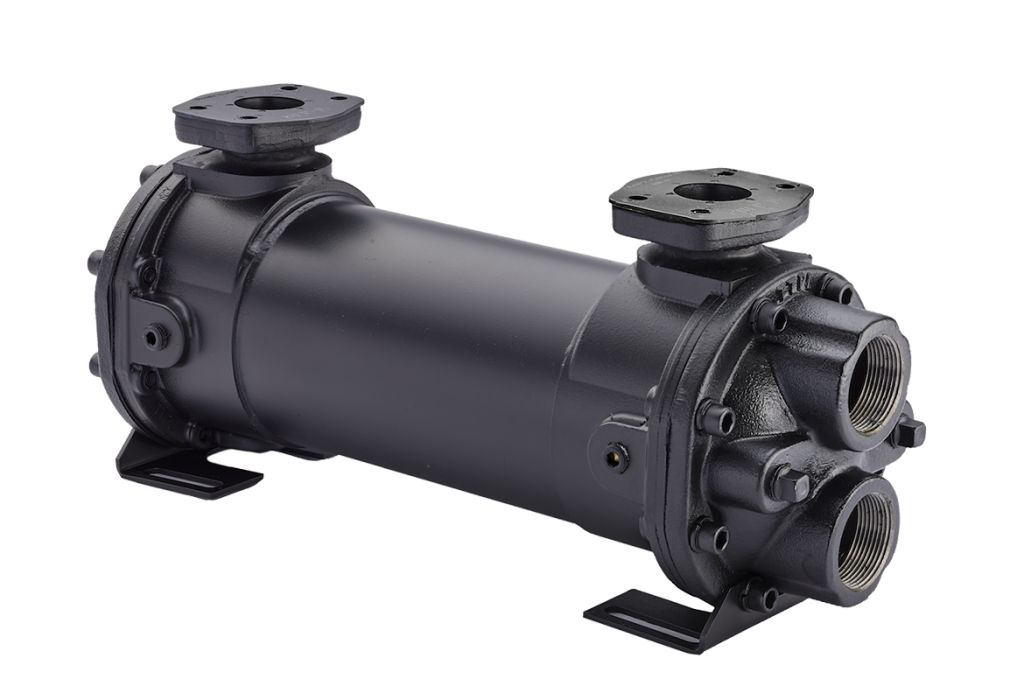

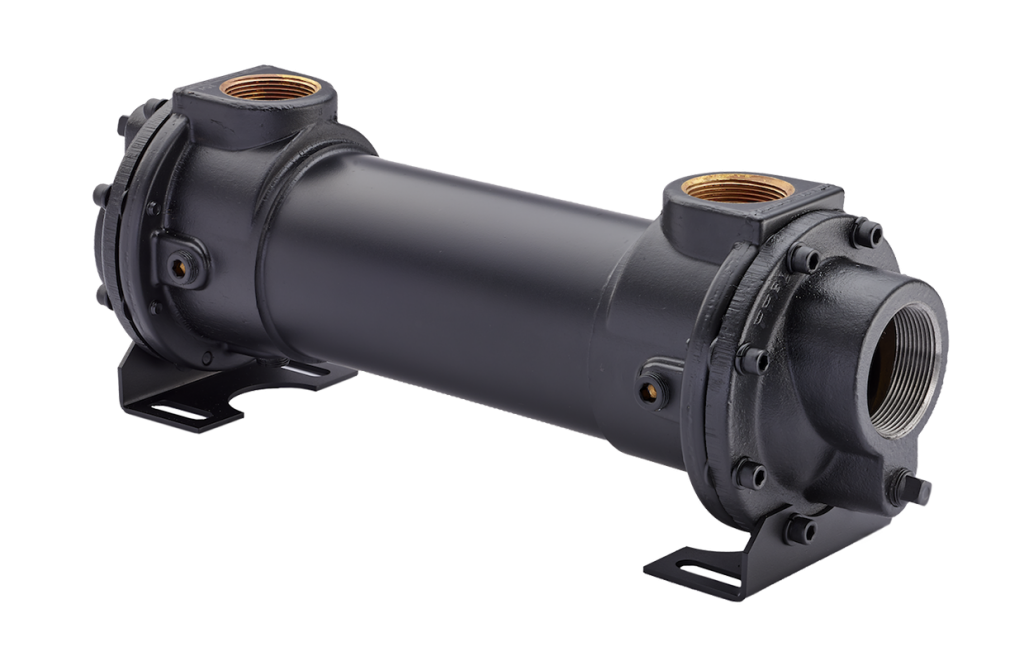

A Series – Water-Cooled Hydraulic Oil Coolers for Industrial and Marine Systems
Type
Hydraulic Oil Cooling
Cooling Medium
Water
Application
Industrial
Technology
Shell & Tube / Brass
Bare Tube Bundle Shell & Tube Water to Oil Cooling
The A/SA Series is very versatile in its ability to accommodate multiple application requirements. 600 and 800 sizes offer ¼” tube and 1000, 1200, and 1600 sizes feature 3/8” tube.
A series is a non-ferrous, Brass construction, which makes it ideal for water to water, including sea water cooling applications.
The SA series is competitively priced steel construction version of the A series, and mainly used for standard hydraulic applications. Steel/cast iron components offers a lower cost solution. SA is only available in 1200 and 1600 sizes.
The A Series is a legacy product developed to interchange with ITT/Standard X-Change.
Consult catalog for additional sizes and technical information.
- ITT interchange
- B or C series is recommended for new applications
-
Sea water applications (A Series only), end model code with BR-CN-B-Z
-
Water to Water applications (A Series only)
-
Cooling Tube Side Material Options
-
Standard Steel
-
Copper Nickel
- Bronze
-
-
Multiple Connection Options
-
NPT x NPT
-
SAE x NPT
-
SAE Code 61 x NPT
-
BSPP x BSP
-
- End bonnets removable for servicing
- Mounting feet included (may be rotated in 90° increments)
- 90/10 copper nickel cooling tubes and bronze end bonnets for sea water service
- All catalog product is available with short lead-times
- Expert application engineers are available to select and size the right product for your application
- XSelector®* is a great tool for optimizing the sizing of TTP coolers. Check out the Apple and Android app stores to download the XSelector® App.
- Our distributor One Status portal allows for on demand quoting of coolers and looking up order status.
- Custom designs are available
* To register for XSelector® please go to thermaltransfer.mifp-iframer.workers.dev/get-in-touch/ and complete the XSelector® Inquiry form and submit.
Download the XSelector® for both Apple and Android formats by searching for XSelector® in their App Stores. You must first register for XSelector® before using it on mobile devices.
- Maximum Operating Pressure – Shell Side 300 PSI
- Maximum Operating Pressure – Tube Side 150 PSI
- Maximum Operating Temperature 300°F
- Heat Rejection from 2-350 HP
- Oil Flow from 3-200 GPM
- Shell – Steel/brass
- Tubes – Copper/Copper Nickel
- Hubs & Tubesheets – Steel/brass
- Baff les – Brass
- End Bonnets – Cast iron/bronze
- Mounting Brackets – Steel
- Gaskets – Nitrile rubber/cellulose fiber
- Nameplate – Aluminum foil
A Series coolers are ideal for stationary hydraulic systems, power units, and marine applications where water or sea water is available for oil cooling. Common uses include hydraulic presses, marine winches, and dockside power packs.
Designed with copper-nickel tubes and bronze end bonnets for long-lasting performance in sea water and brackish environments.
What type of systems use the A Series cooler?
Stationary and marine hydraulic systems where water is available as a cooling source.
Can the A Series handle sea water?
Yes. Copper-nickel tubes and bronze end bonnets are available for corrosion resistance.
How do I select the right size for A series?
Use TTP’s XSelector® sizing program to find the ideal configuration for systems between 2 and 350 HP.
